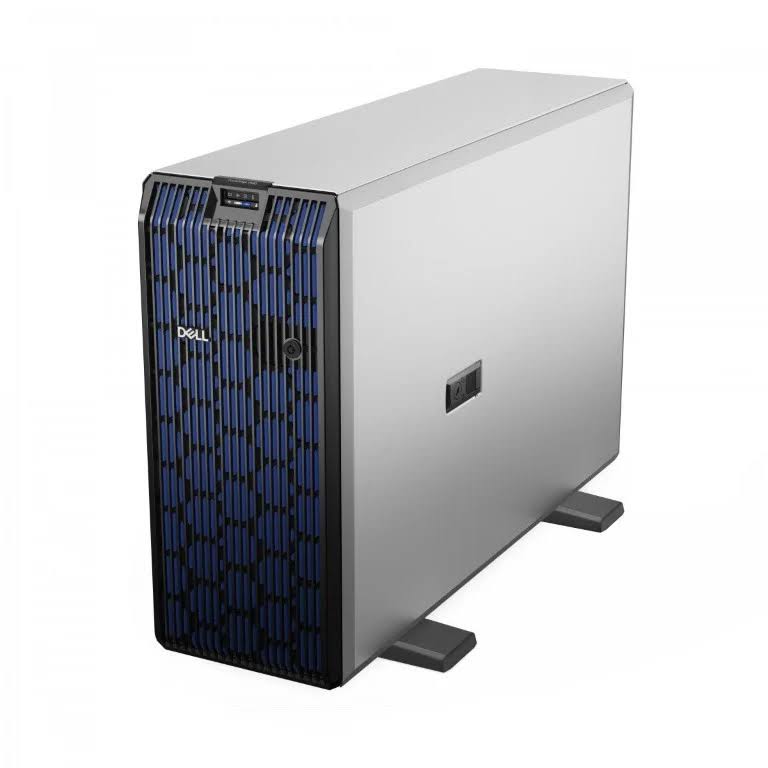

Product: Dell PowerEdge T550

Product type: Server

Chassis type: Tower

Processor family: Intel Xeon Silver

Processor model: 4309Y

Processor frequency: 2.8 GHz

Internal memory: 16GB RDIMM, 3200MT/s, Dual Rank

Internal memory type: DDR4

Storage capacity: 1x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD

HDD size: 3.5" Chassis with up to 8 Hot Plug Hard Drives

HDD interface: SAS/SATA (HDD/SSD)

Controller: PERC H755 SAS Front (RAID 0, 1, 5, 6, 10, 50, 60)

LAN: Broadcom 5720 Dual Port 1Gb On-Board LOM

Power supply: Dual, Hot-Plug, Power Supply, 700W MM HLAC (ONLY FOR 200-240Vac) Titanium, Redundant (1+1)

Redundant power supply (RPS): Supported

Operating System: Optional

A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance in remote or branch office locations.

Innovate at scale with an expandable tower server for mission-critical business workloads

The Dell PowerEdge T560, powered by the 4th Generation Intel Xeon Scalable processors, is an enterpriseclass tower server that offers advanced technologies with accelerators. It is a purpose-built server with officefriendly acoustics that maximizes next-gen technologies to achieve optimal performance in a small footprint. The Dell PowerEdge T560 is an ideal tower server for traditional corporate IT, virtualization, database and analytics, and inferencing for AI/ML, delivering robust compute performance.

The latest technologies for balanced performance

This all-in-one powerhouse provides ease of management and expandability for growth and performance.

• Provides additional support for database applications with expanded storage with up to 12 x 3.5-inches drives and 24 x 2.5-inches drives allowing for a mix of HDD, SAS4 SSD, and NVMe support.
• Virtualization and AI inferencing capabilities with up to two Xeon Scalable processors, doubled-bandwidth DDR5 memory, double-speed PCIe Gen5, and up to 6 GPUs.
• Achieves enterprise-level security requirements with cyber-resilience to store, process and analyze data.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Increase efficiency and accelerate operations with an autonomous infrastructure

The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
